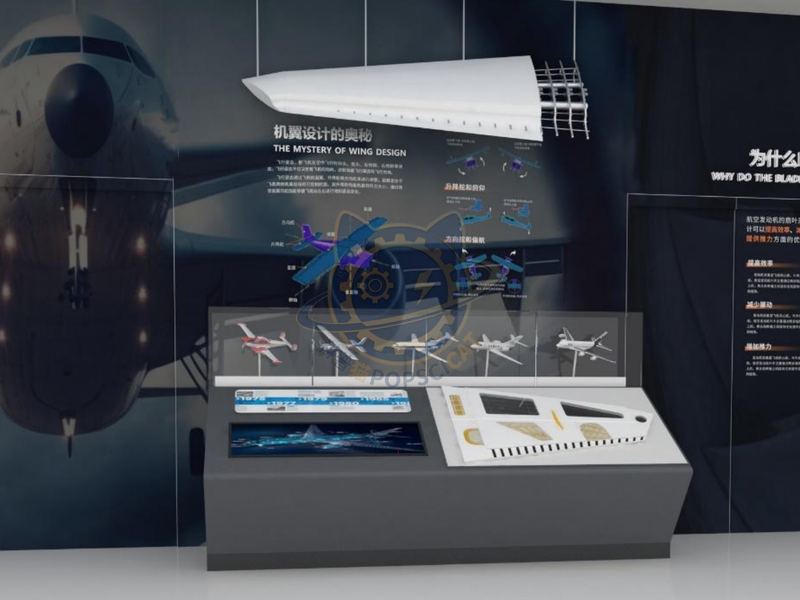

The Mystery of Wing Design

Wing design is one of the core elements in aviation engineering, and its complexity stems from the need to simultaneously meet multiple performance requirements, such as lift, drag, efficiency, and structural strength. The main load-bearing structure of an aircraft wing that can carry most of its weight is the wing box, which is made of very lightweight and sturdy carbon fiber material, with hundreds or thousands of skeletons inside. The load-bearing components of aircraft wing structures include skin, aircraft stringers, wing ribs, wing beams, longitudinal walls, and fasteners (rivets, bolts, etc.). The cross-sectional shape of the wing design, also known as the airfoil, directly determines the lift and drag characteristics of the aircraft. According to different planar shapes, aircraft wings can be divided into straight wings, swept wings, delta wings, etc; According to the different force forms of the wing box section structure of an aircraft, it can be divided into beam wings, single block wings, etc. Double beam wing structure, multi wall wing structure, single block wing structure, wing material, wings not only need to meet the requirements of air conditioning.

The unit is designed for unsupervised public use: controls are recessed or shielded, moving parts are enclosed, and the interface is operable by a child of about six with no instruction. Where a screen is used, the language can be switched without changing the hardware, and the content can be replaced on site.

How do airplane wings withstand heavy loads? Given the weight of the wing itself, the ability to safely withstand operational loads relies on the correct selection of structural materials, rational arrangement of structural components, and careful design analysis and optimization of structural dimensions. ① Selection of wing materials: The skin of the wing tends to use composite materials, while the load-bearing structure still uses metal materials. The characteristics of carbon fiber composite materials are light weight and heavy load-bearing capacity, making them very suitable for use on aircraft wings. ② Reasonable arrangement and size optimization of wing structural components: The main load-bearing structure of an aircraft wing that can carry most of its weight is the wing box, which is made of very lightweight and sturdy carbon fiber material, with hundreds or thousands of skeletons inside. ③ The function of the wing: The main function of the wing is to generate lift to support the aircraft's flight in the air, while also playing a certain role in stability and operation. There are usually ailerons and flaps installed on the wings, and manipulating the ailerons can make the aircraft roll and lower.
