Home/Water play/Elements/Bubble Curtain

Bubble Curtain

Pull a rope and a sheet of bubbles stretches across a frame.

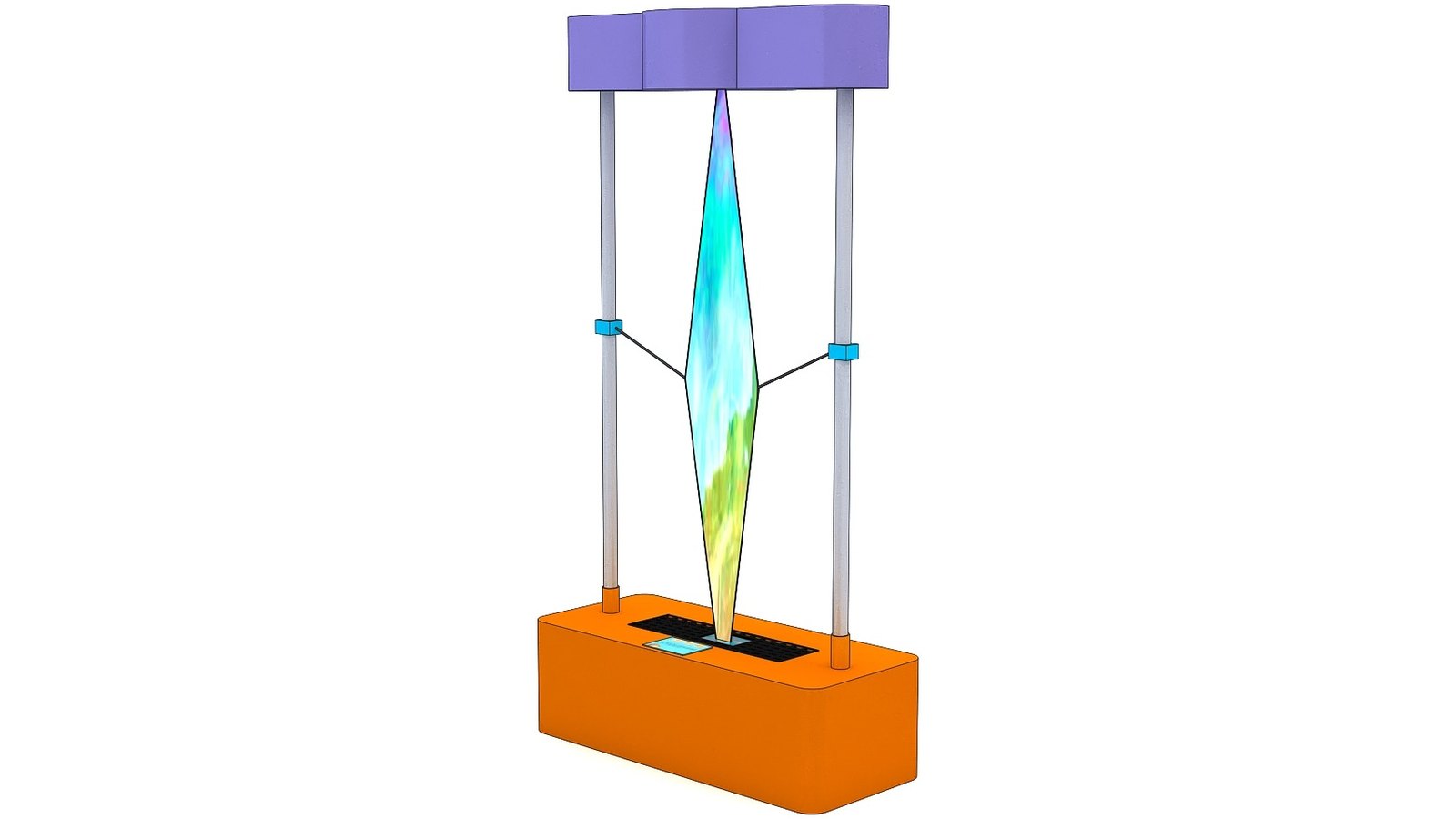

Bubble Curtain — water play element, 1600 × 680 × 3000 mm
Standard build1600 × 680 × 3000 mm
GroupJets, Spray & Bubbles
Standard size1600 × 680 × 3000 mm
WaterRecirculated from the basin; the element drains back by gravity
Power220–240 V, single phase — pump duty set by the zone loop
MaterialsSUS304 frame · HDPE touch surfaces · cast acrylic windows
SupplySingle unit or batch · OEM to your drawing
Lead timeStandard 4–8 weeks after deposit (confirmed per contract)
Warranty1 year, structure and control
DocumentsSpecification sheet · control diagram · spare-part list

A standard element: the geometry and the finish are fixed, which is what keeps the price and the lead time predictable. Size, colour and the way it mounts to the basin can be adapted without a new design cycle.

Ask about this element → Email us
01 / Overview

A tall frame with a soap film stretched across it and a bubble solution feed at the base. Visitors draw the frame open with a cord and a curtain of bubbles forms in the opening.

02 / How it works

A film only holds where the frame gives it an edge, so the size of the bubble is set by how far the visitor opens it. Interference colours appear as the film thins, which is why the curtain shimmers just before it breaks.

03 / What visitors do

Open it slowly, watch the colours, then pop it. Repeated until the solution runs out, which is the one maintenance item worth planning for.

04 / In a zone

Three metres tall, so it pairs with a mezzanine or a double-height space. Needs a drip tray and a refill point; keep it away from splash-heavy neighbours or the film will not hold.
