Twenty-six water play units

Standard units, not concept renders. Every size below is the real footprint of the unit we build, in millimetres, in the order length × width × height. Drop one into an existing pool or take the set. The last group is the outdoor range: no basin, no pump, no power.

26 units Sizes published Single-unit orders SUS304 · HDPE · acrylic

01 / Lifting & Pumping

Getting water uphill by hand — screw, chain, wheel, bucket, sluice.

5 elements in this group. Sizes are the standard build; a different size is a new drawing, not a new concept.

Archimedes Screw

An open helical screw that lifts water two metres by hand.

2600 × 1300 × 1700 mmView →

Chain Water Lift

A chain of small buckets on a wheel — the oldest water lift there is.

1000 × 800 × 2100 mmView →

Bamboo Water Wheel

A large spoked wheel with bamboo-section scoops, fed by a hand pump.

2400 × 2100 × 1700 mmView →

Tipping Bucket

Fills until it is top-heavy, then dumps itself. Nobody has to explain it.

Pool-integratedOn request

Dam, Sluice & Lock

A model dam with working gates — hold the water back, then let it go.

Pool-integratedOn request

02 / Conveying & Flow

Channels, plates and tunnels that let visitors steer water themselves.

5 elements in this group. Sizes are the standard build; a different size is a new drawing, not a new concept.

Step Cascade Tower

A spiral of trays that carries one stream of water down in steps.

3000 × 3000 × 2731 mmView →

Insert-a-Plate Flow Wall

A long shallow table where visitors build the channel themselves.

4600 × 2000 × 470 mmView →

See-Through Water Tunnel

A clear tube you crouch through while water pours down its inside.

3900 × 790 × 830 mmView →

Step Ball Roll

Water carries balls up a stair of troughs; gravity brings them back.

2700 × 1500 × 1700 mmView →

Vortex Column

Press a button and a whirlpool forms in a clear column.

520 × 450 × 1480 mmView →

03 / Jets, Spray & Bubbles

Water thrown into the air, or turned into foam and bubbles.

6 elements in this group. Sizes are the standard build; a different size is a new drawing, not a new concept.

Shouting Fountain

Two jets that rise with the volume of a voice.

1100 × 1050 × 790 mmView →

Octopus Spray

A crank-driven figure whose arms throw water in a ring.

700 × 700 × 680 mmView →

Water Mushroom Spiral

A wall-mounted spiral of cups that fills and tips in sequence.

770 × 358 × 1300 mmView →

Bubble Curtain

Pull a rope and a sheet of bubbles stretches across a frame.

1600 × 680 × 3000 mmView →

Bubble Columns

Three clear columns of rising bubbles in different colours.

2000 × 500 × 2000 mmOn request

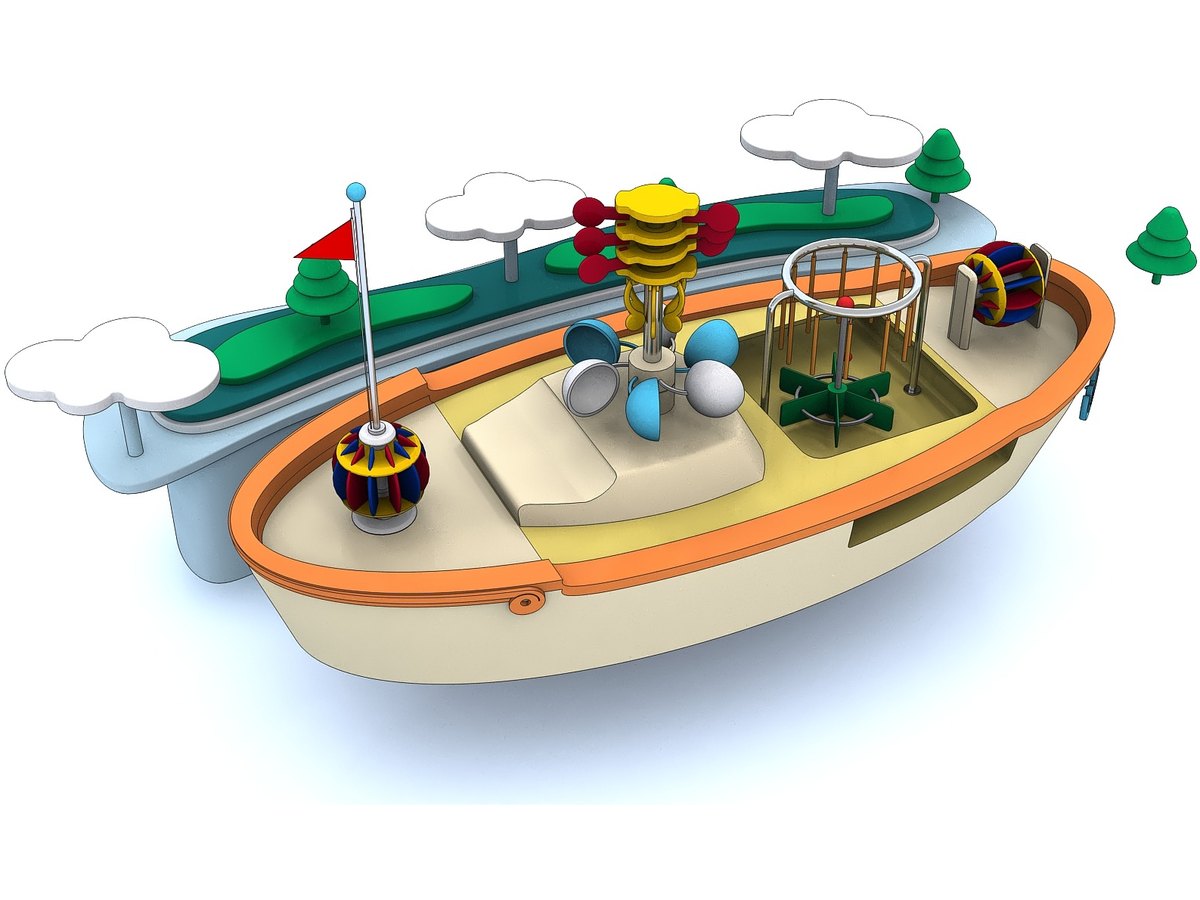

Water Cannon Boat

A play boat with four water cannon aimed at a floating target.

2700 × 1400 × 1200 mmOn request

04 / Balls & Sensory

Air and water pressure made visible, plus sound and illusion.

4 elements in this group. Sizes are the standard build; a different size is a new drawing, not a new concept.

Ball & Jet Target

Aim a nozzle, shoot a floating ball into a ring.

2700 × 1500 × 2300 mmView →

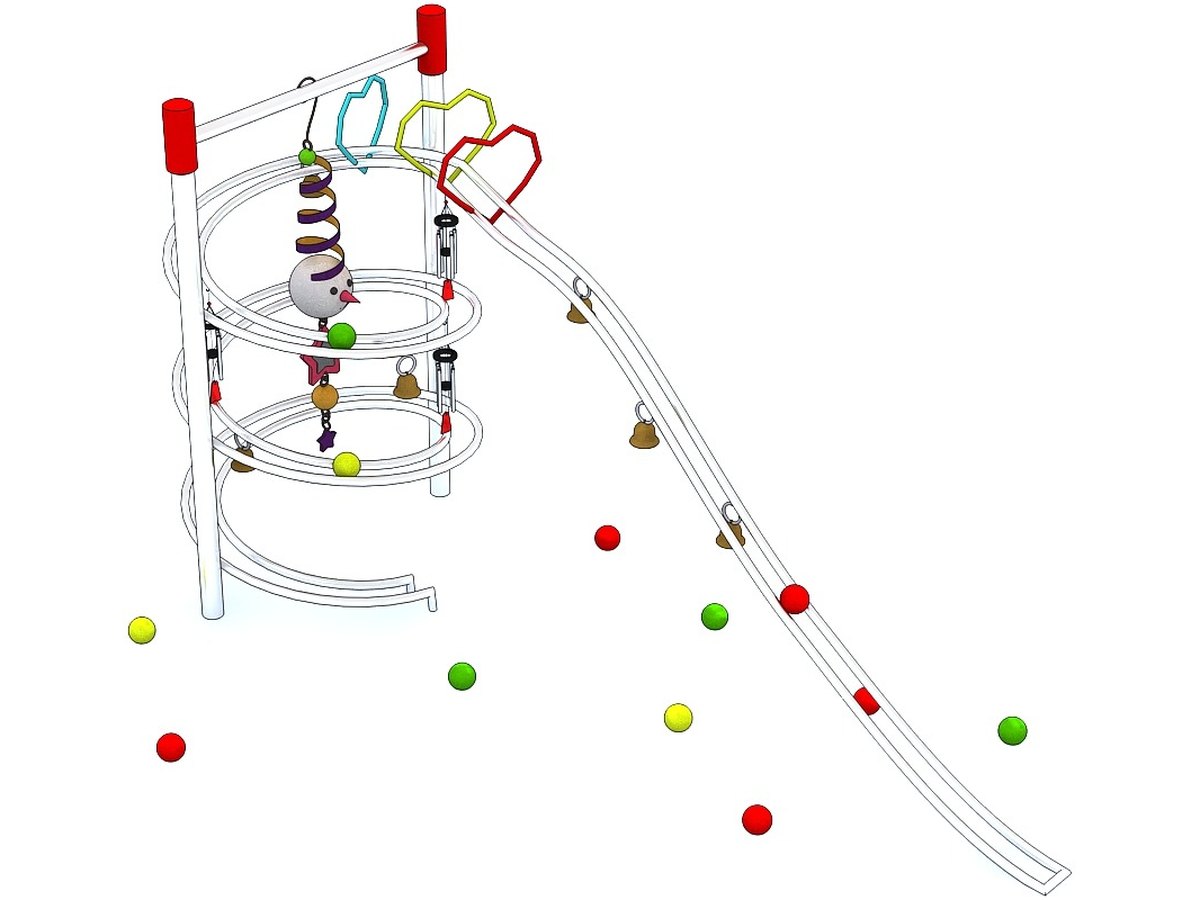

Push-Ball Roll

A water jet pushes balls up a spiral and over the top.

1150 × 920 × 940 mmOn request

Mystery Tap

A tap running in mid-air with no pipe above it.

800 × 800 × 2000 mmOn request

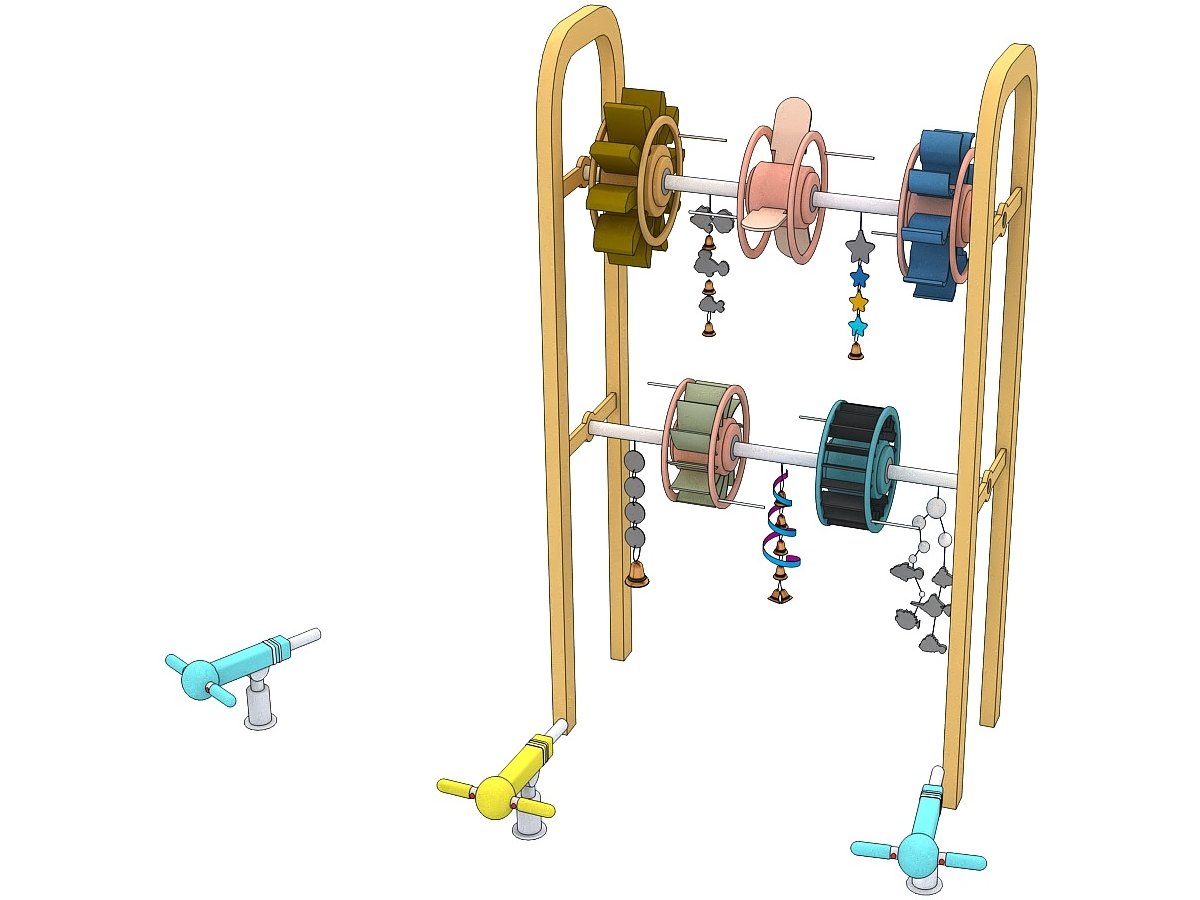

Water Bell Wheel

Water turns a wheel that rings a row of bells.

1700 × 1800 × 1750 mmOn request

05 / Outdoor & Unpowered

Units that stand on a drained deck — no basin, no pump, no power. Bolted down and left out in the weather.

6 units in this group. Sizes, weights and working capacity are for the standard build; the deck is laid out around them.

Unit	Size (L × W × H)	Weight	Capacity	What it is
Hand-Pump Waterworks	4000 × 6000 × 2700 mm	560 kg	16+ at once	A pump-and-funnel tower: visitors turn handles, water runs through a network of funnels and drives a row of wheels and scoops.
Water Wheel Drive	2000 × 1000 × 1600 mm	65 kg	3 at once	Water poured into a funnel drives a spoked wheel. The simplest of the outdoor units and the one that survives the hardest use.
Site Vehicle Flow	Build to layout	80 kg	3 at once	Water fills a tipper and a loader; the visitor controls the discharge. Popular with older children and with anyone who likes diggers.
Tipping Vessel	2000 × 1000 × 1600 mm	67 kg	2 at once	A vessel fills from a funnel and is tipped by hand — the outdoor version of the tipping bucket, with a longer, slower cycle.
Paddle Wheel Flow	2000 × 1000 × 1600 mm	65 kg	2 at once	A crank feeds a header; the falling water turns a paddle wheel. One moving part, nothing to clog.
Spiral Channel	2000 × 1000 × 2400 mm	80 kg	—	Water follows a helical channel around a central column, gaining speed as it descends, and drives a gear wheel at the base.

Materials

SUS304 stainless frame tubing, HDPE panels, PC and cast acrylic windows, powder-coated galvanised sheet. All fasteners in A2 stainless.

Graphics

Every panel and basin skirt can carry a printed pattern or a client logo. UV-stable print, applied over a primed and sealed substrate.

Weather

Drained aprons, no standing water at edges, and pump skids specified for outdoor enclosures. For freezing climates the loop is specified drain-down.

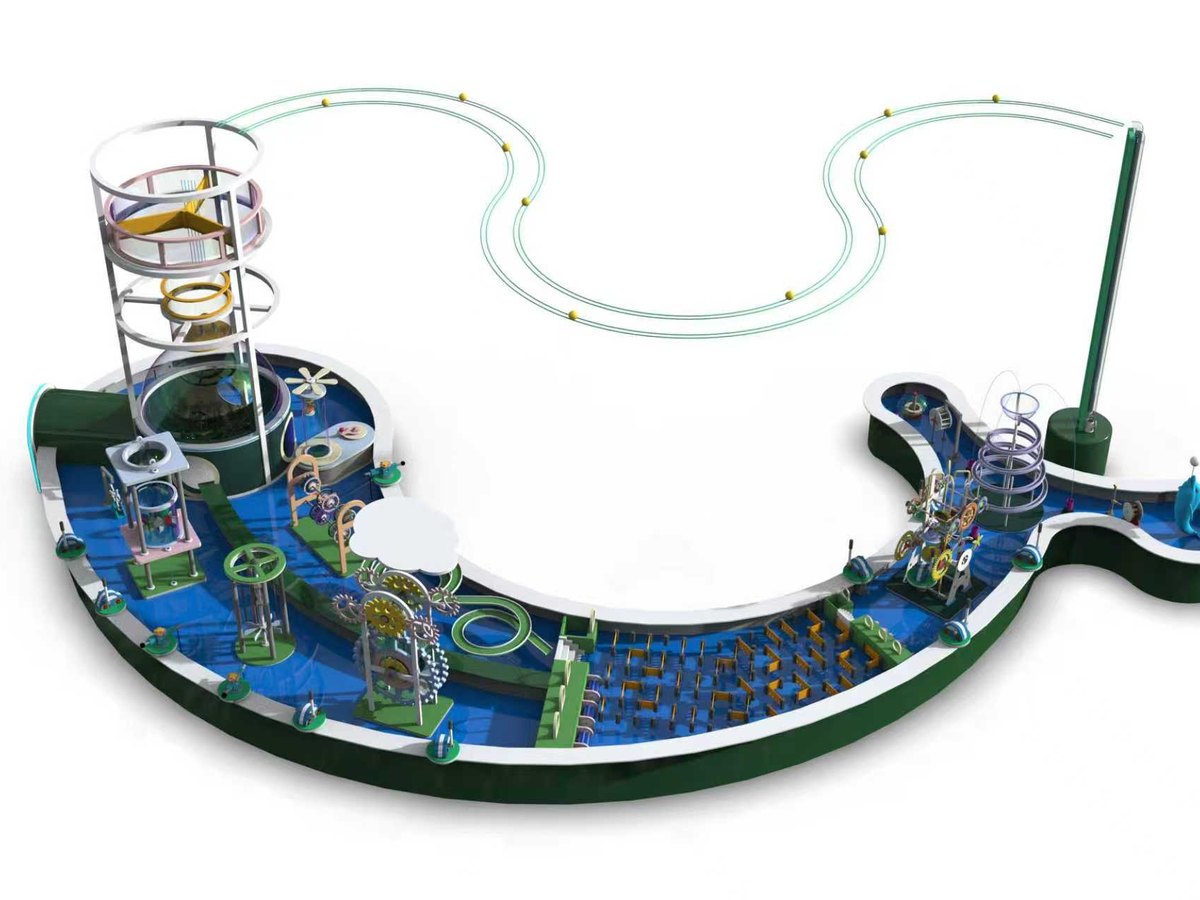

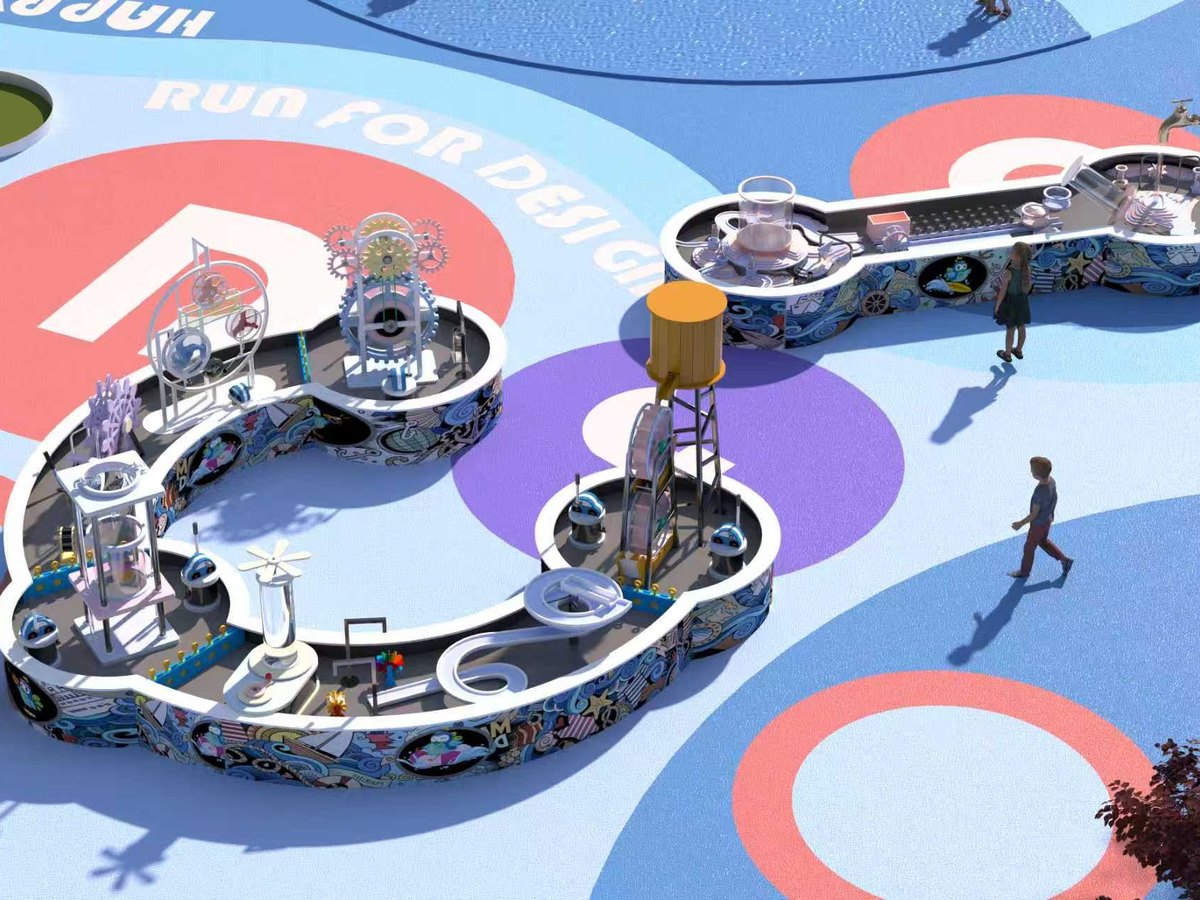

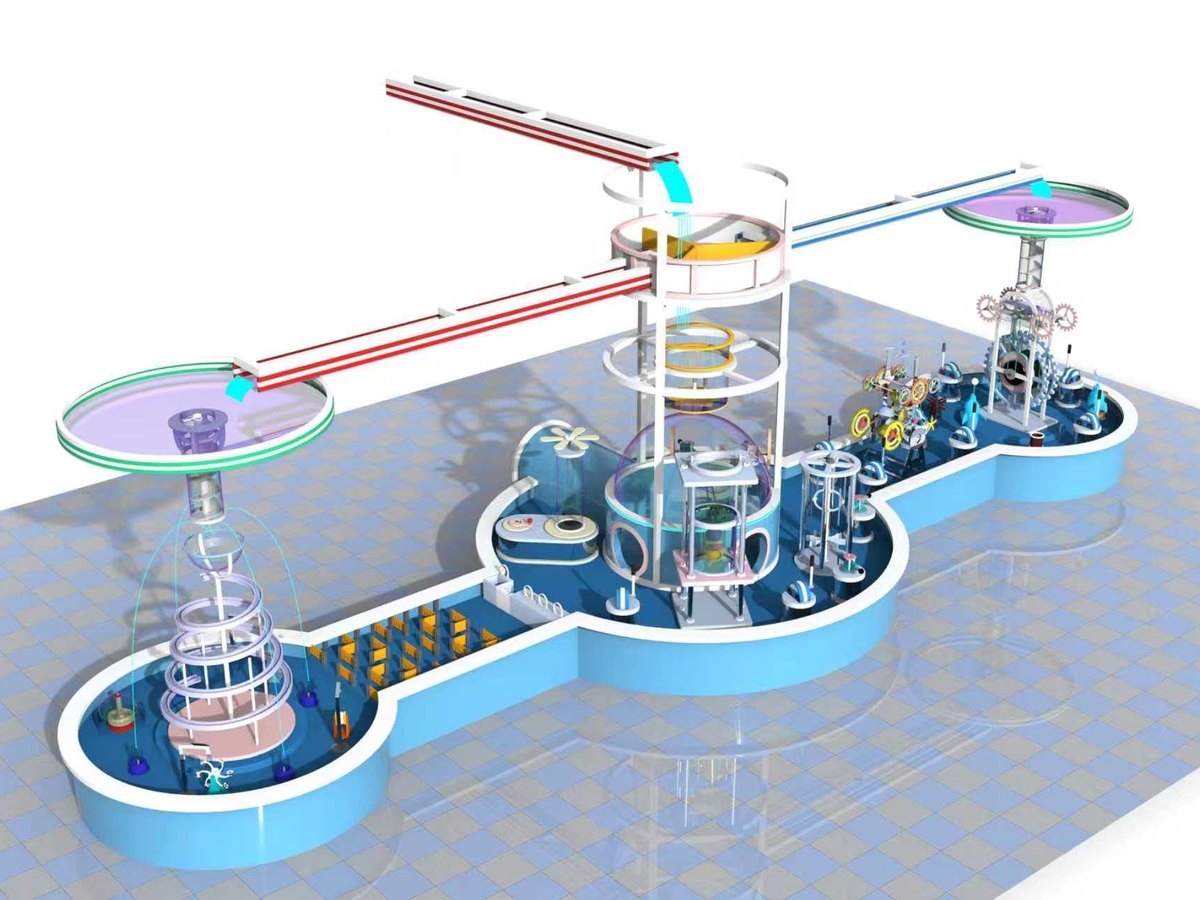

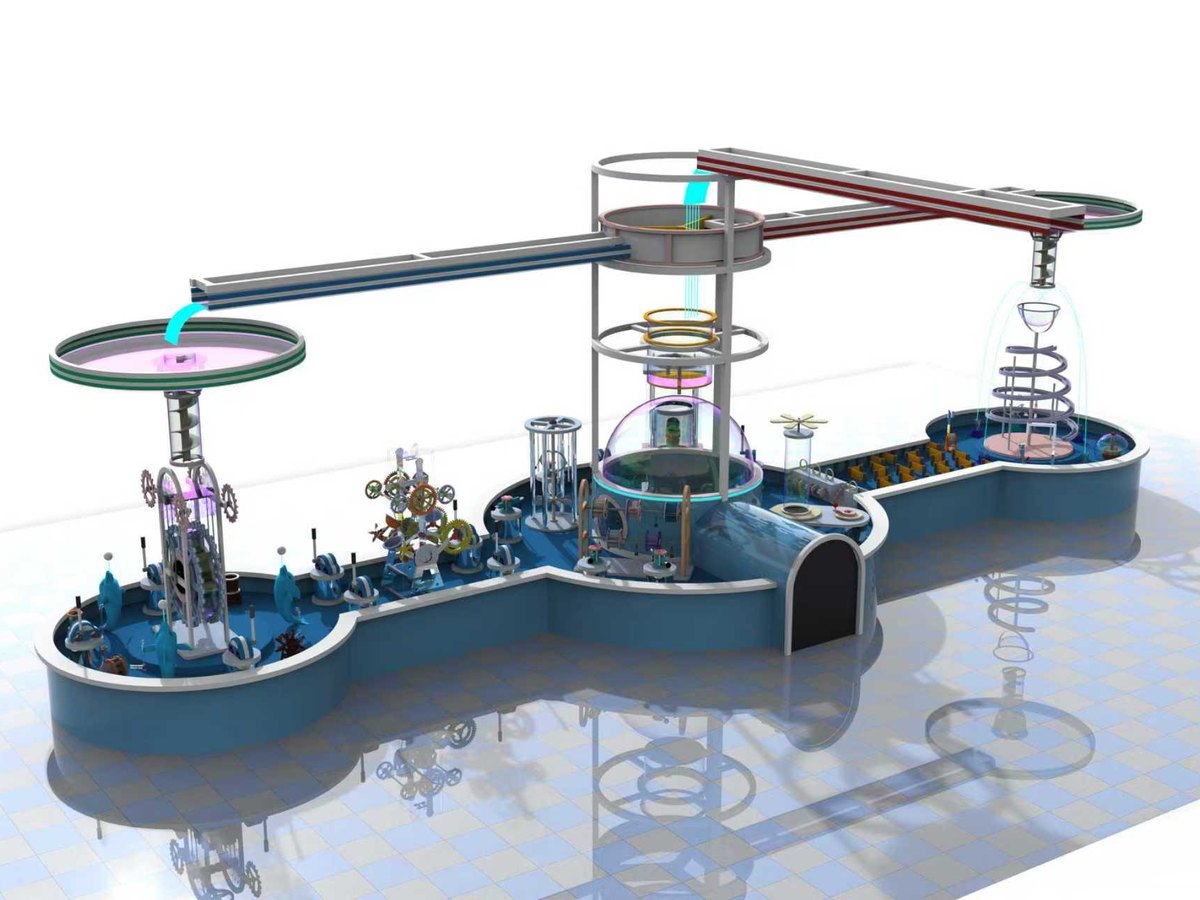

Outdoor water play deck — reference layout
