See-Through Water Tunnel

A clear tube you crouch through while water pours down its inside.

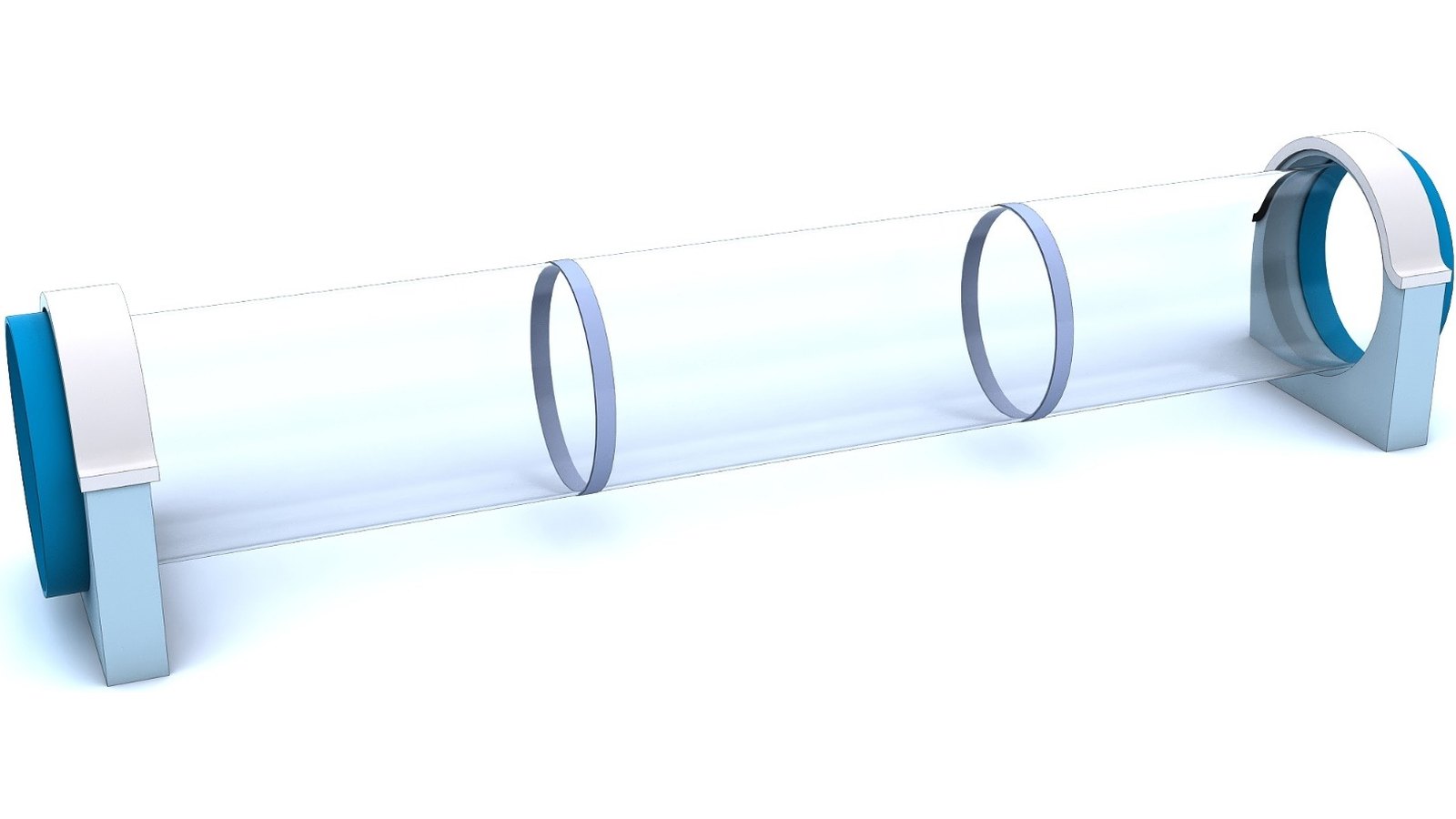

See-Through Water Tunnel — water play element, 3900 × 790 × 830 mm
Standard build3900 × 790 × 830 mm
GroupConveying & Flow
Standard size3900 × 790 × 830 mm
WaterRecirculated from the basin; the element drains back by gravity
Power220–240 V, single phase — pump duty set by the zone loop
MaterialsSUS304 frame · HDPE touch surfaces · cast acrylic windows
SupplySingle unit or batch · OEM to your drawing
Lead timeStandard 4–8 weeks after deposit (confirmed per contract)
Warranty1 year, structure and control
DocumentsSpecification sheet · control diagram · spare-part list

A standard element: the geometry and the finish are fixed, which is what keeps the price and the lead time predictable. Size, colour and the way it mounts to the basin can be adapted without a new design cycle.

Ask about this element → Email us
01 / Overview

A cylindrical acrylic tunnel laid across the basin at child height. Water cascades down the inside of the tube while visitors crawl through the dry centre.

02 / How it works

The water film clings to the inside wall and falls around the visitor rather than on them — a sheet of water overhead with a dry corridor inside it. It is the one element in the range that puts a child inside the water without getting them wet.

03 / What visitors do

Crawl through, stop in the middle, look up. Small children will do it repeatedly; older ones try to work out why they stay dry.

04 / In a zone

Spans a narrow part of the basin, so it doubles as a bridge. Both ends need 1.2 m of clear apron for entry and exit, and the tube must be mounted on a frame — never bonded into the basin wall.
